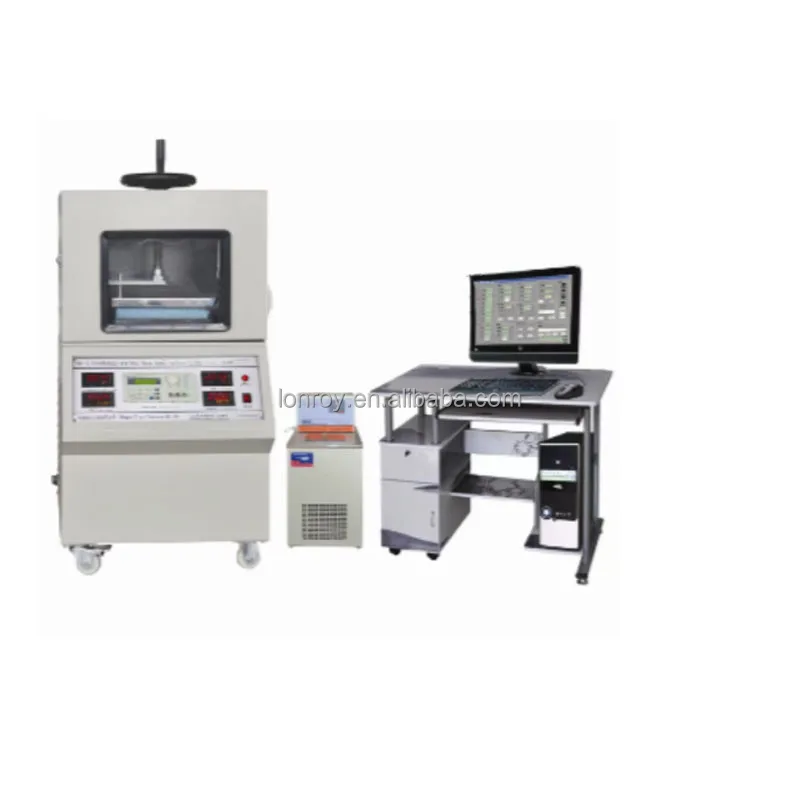

DRH-III double plate thermal conductivity measuring instrument protective hot plate meter
I. Product description DRH double plate thermal conductivity tester is based on the principle of unidirectional stable thermal conductivity. When the upper and lower sides of the sample are at different stable temperatures, the heat flow through the effective heat transfer area of the sample and the temperature difference and thickness between the two surfaces of the sample are measured to calculate the thermal conductivity. It meets the requirement of high precision test for thermal conductivity of materials. Automatic data acquisition, data processing, printing reports, data storage. The advantages of short measurement time, accurate data, good repeatability and high degree of automation.
DRH-III double plate thermal conductivity measuring instrument protective hot plate meter
2.Purpose The thermal conductivity tester mainly tests plastic, rubber, glass, fiber, benzene board, extrusion board, foams concrete, hollow glass, wood, all kinds of thermal insulation materials and other uniform plate materials, while measuring the thermal conductivity of granular material, bulk material, soft material and other substances. Applicable standards: GB/T10294-2008 "Determination of steady-state thermal resistance and related characteristics of thermal insulation materials"; GB/T3399-1982 "plastic thermal conductivity test method - heat protection plate method"; GB/T10801.1-2002 "Polystyrene foam for thermal insulation" specified in the polyurethane rigid foam material thermal conductivity measurement; GB/T10801.2-2002 "Extruded polystyrene foam for insulation (XPS". Measurement of the thermal conductivity of extruded polystyrene foam specified in; GB/T3139-2005 "fiber reinforced plastics thermal conductivity test method"; GB/T17794-2008 "flexible foam rubber insulation products";
DRH-III double plate thermal conductivity measuring instrument protective hot plate meter
3. Main technical parameters 1. Measuring range of thermal conductivity: 0.001 ~ 3.000W/m.K. Thermal conductivity measurement accuracy: ±2%, repeatability: ±1%. 2. Hot surface temperature measurement range: room temperature ~ 150℃, temperature resolution: 0.01℃. 3. Cold surface temperature measurement range: 0 ~ 60℃, temperature resolution: 0.01℃ (basic configuration). (Can be selected according to user requirements: -10 ~ 60℃,-30 ~ 60℃).
Heating power of
metering plate
100W+1%
Test time
60 minutes
Power supply
220V50HZ,500W.
Sample size
100*100* (5 ~ 80) mm 200*200* (5 ~ 80) mm 300*300* (5 ~ 80) mm (basic configuration) 600*600* (5 ~ 80) mm (Other specifications can be customized according to user requirements)
DRH-III double plate thermal conductivity measuring instrument protective hot plate meter
4.Features Online temperature calibration: unique technology, calibration instrument is simple and fast, accuracy is improved by more than 3 times. The whole process test time is greatly shortened. Large measuring range: range 0.001 ~ 3.00w/(m.k). Automatic thickness measurement: computer automatic thickness measurement, reduce human error. Automatic pressurization system: computer automatic pressurization, can test the thermal conductivity under different pressure, more scientific than manual pressurization, more data, better repeatability. Many types of measurement: in addition to measuring hard plates, the company's various accessories can be selected to measure a variety of special materials. For example: granular material, bulk material, soil, soft material, liquid, etc.
