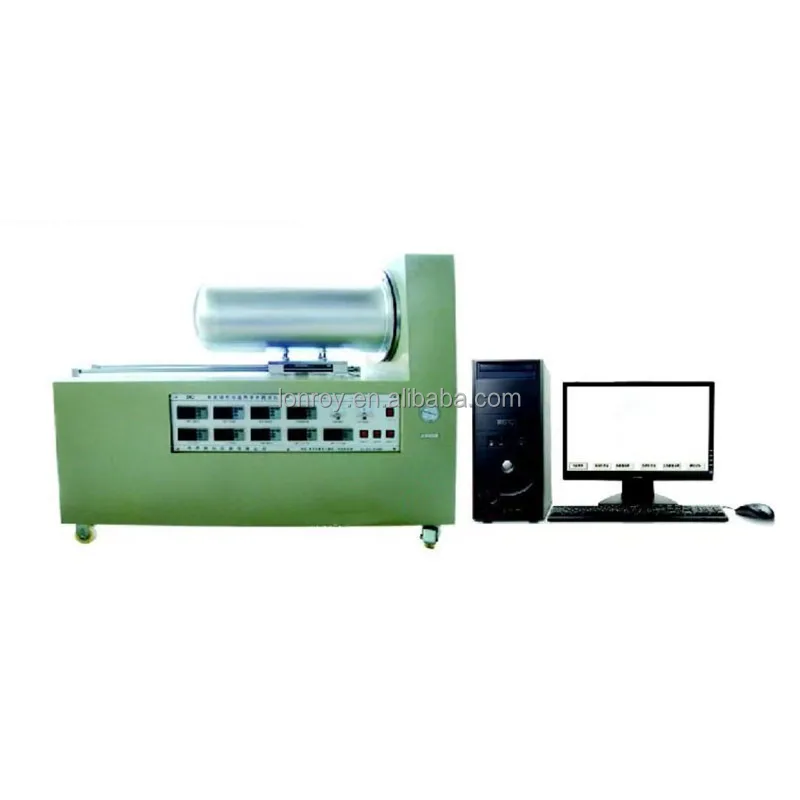

DRJ-II Metal High Temperature Thermal Conductivity Test Machine Thermal Resistance Tester

Name: DRJII Metal High Temperature Thermal Conductivity Test Machine Thermal Resistance Tester
Brand: lonroy
Price: 1 USD

DRJ-II Metal High Temperature Thermal Conductivity Test Machine Thermal Resistance Tester Manufactures

Brand Name : lonroy

Place of Origin : Guangdong, China

MOQ : 1

Accuracy : better than 3%

Power supply : 220V, 50HZ

Thermal conductivity range : 1.0 ~ 500W/m.K

Rod sample size : 3 ~ 5×220(mm)

Filament sample size : 1 ~ 3×20-45(mm)

Max temperature : 1350ºC

Heating power adjustment : ±1%

Voltage : 220 V

Protection class : Ip56

Temperature range : 80 ~ 1000ºC

Vacuum capability : Yes

Protective atmosphere : Yes

Computer control : Yes

Automatic temperature control : Yes

Data output : Printing

Contact Now

Product Description

DRJ-II Metal High Temperature Thermal Conductivity Test Machine Thermal Resistance Tester
1.Use
Using the sample direct current longitudinal heat flow method, it is suitable for measuring the thermal conductivity of metal at the temperature range of 80 ~ 1000ºC, and the test is completed automatically by the computer. It meets the testing requirements of the thermal conductivity of metal materials in the material testing and research department. Instrument reference standard: GB/T3651-2008 "Metal high temperature thermal conductivity measurement method". It is also suitable for GB8722-2008 "Graphite material medium temperature thermal conductivity determination method".

DRJ-II Metal High Temperature Thermal Conductivity Test Machine Thermal Resistance Tester

2.Product Parameter

thermal conductivity test range	1.0 ~ 500W/m.K
accuracy	better than 3%
power supply	220V, 50HZ
sample size requirements	rod sample: 3 ~ 5×220(mm) Filament sample: 1 ~ 3×20-45(mm)

Test the experimental temperature under controllable state, and the maximum temperature of The electric furnace is 1350ºC
The heating power can be adjusted ±1%.
Vacuum and protective atmosphere can be filled.
To achieve computer automatic testing, automatic temperature control, to achieve data printing output
