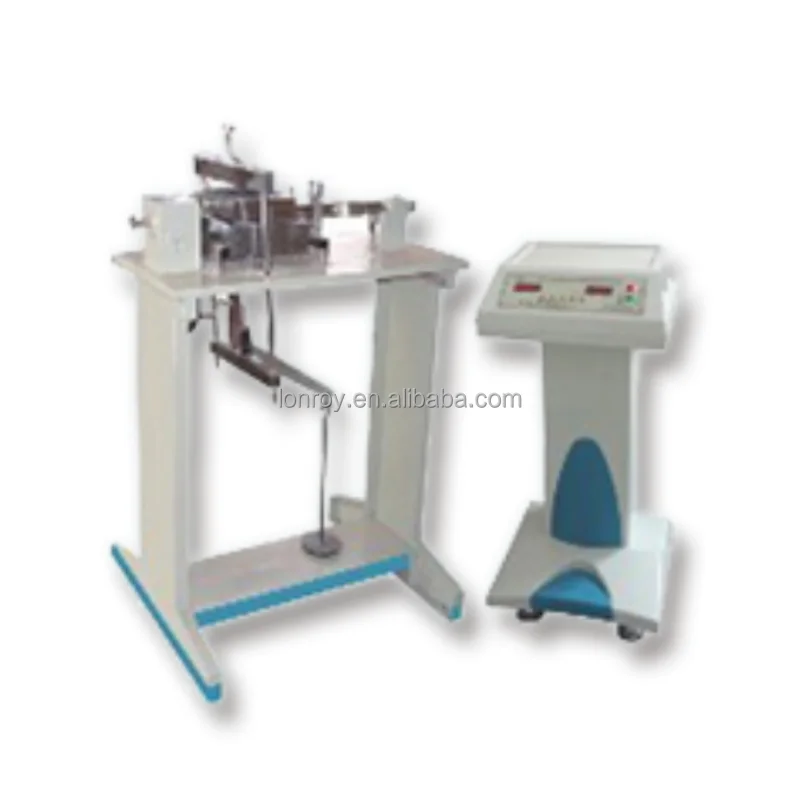

ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Geotextile Interface Friction Test Machine with 0-10KN Force Measurement Range

Name: ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Geotextile Interface Friction Test Machine with 010KN Force Measurement Range
Brand: Lonroy
Price: 1 USD

ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Geotextile Interface Friction Test Machine with 0-10KN Force Measurement Range Manufactures

Brand Name : Lonroy

Place of Origin : China

MOQ : 1

Force measurement range : 0 - 10KN

Horizontal shear rate : 0.02 - 3mm/min

Horizontal shear displacement : 0 - 30mm

Rated voltage : AC220V 50Hz

Vertical loading pressure : 100kpa, 200kpa, 300kpa, 400kpa

Protection class : IP56

Transmission type : Ball screws

Load sensor type : Wheel-rim type

Transmission mechanism : Circular arc tooth synchronous belts

Speed ratio : 1:100,000

Frame structure : Floor-standing

Motor type : High-precision stepper

Shear implementation : High-precision stepper motors

Coaxiality process : Special processes

Fixture design : Firm clamping, no sliding

Certification : ISO ASTM CE

Price : Negotaible

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Sand Geotextile Interface Friction Test Machine

Product Description

Scope of Application

By conducting direct shear tests on the contact surface of standard sand and geotextile, the friction characteristics of the sand/geotextile interface were determined. This method is applicable to all geotextiles and their related products. High-precision stepping motors were used.

Compliant with standards

ISO12957.1, GB/T17635.1, ASTM D5321, JTGE50T1129, SL/T235-199

Product features

The mainframe adopts a floor-standing frame structure, featuring high strength, minimal deformation, and an elegant and stylish appearance; it uses imported high-precision ball screws for transmission, ensuring efficient and smooth operation;

It employs high-precision wheel-rim type load sensors, offering high measurement accuracy and excellent stability;

The transmission part uses circular arc tooth synchronous belts for transmission, ensuring no gap in both directions during the transmission process;

The speed ratio can exceed 1:100,000;

The fixture is specially designed for firm clamping, convenient operation, and no sliding of the jaw;

Special processes ensure the coaxiality of the testing machine and effectively eliminate the influence of irregular test specimens on the sensors.

ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Sand Geotextile Interface Friction Test Machine

Technical Specification

Horizontal shear implementation	Achieved using high-precision stepper motors
Force measurement range	0 - 10KN
Vertical loading pressure	100kpa, 200kpa, 300kpa, 400kpa
Horizontal shear rate	0.02 - 3mm/min
Horizontal shear displacement	0 - 30mm
Rated voltage	AC220V 50Hz
