ISO 11058 ASTM D4491 Geosynthetics Vertical Permeability Tester with IP56 Protection for Laboratory Testing

Name: ISO 11058 ASTM D4491 Geosynthetics Vertical Permeability Tester with IP56 Protection for Laboratory Testing
Brand: Lonroy
Price: 1 USD

ISO 11058 ASTM D4491 Geosynthetics Vertical Permeability Tester with IP56 Protection for Laboratory Testing Manufactures

Brand Name : Lonroy

Place of Origin : China

MOQ : 1

Voltage : 220 V

Protection Class : Ip56

Weight : 170kg

External Dimensions : 1200*500*1440(L*W*H)

Sample Thickness : 0.1 to 10 millimeters

Head of Water : Adjustable from 0 to 300mm

Sample Diameter : 52 millimeters, 100 millimeters

Certification : ISO ASTM CE

Price : Negotaible

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

ISO 11058 ASTM D4491 Geosynthetics Vertical Permeability Tester Geosynthetic Vertical Hydraulic Permeameter

Product Description

Introduction

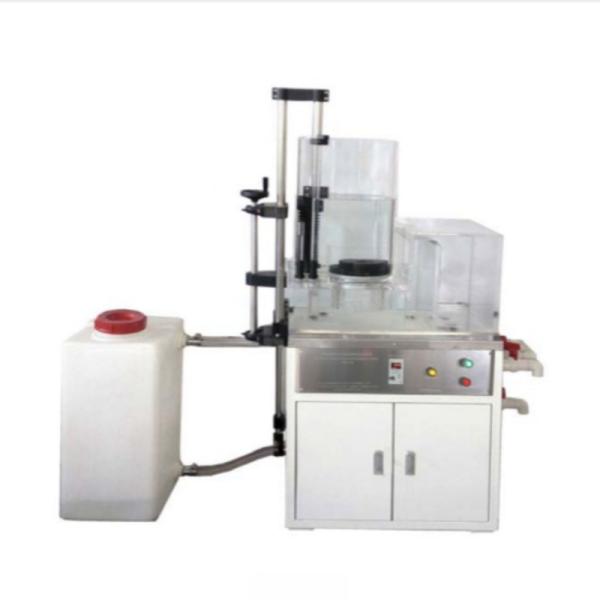

The geosynthetic vertical permeability tester is used to determine the vertical permeability performance of geotextiles and related products under the constant head method. The water head of this type of geotextile vertical permeability tester can be adjusted (0-300mm) and can maintain a stable water head. To reduce water head loss during the design of the geosynthetic permeability test equipment, a box-shaped structure is adopted.

Standard

ISO 11058, ASTM D4491, GB/T15789-2016, JTG E50 T1141-2006, SL/T 23-2012, etc.

ISO 11058 ASTM D4491 Geosynthetics Vertical Permeability Tester Geosynthetic Vertical Hydraulic Permeameter

Technical Specification

Sample Diameter	52 millimeters, 100 millimeters
Head of Water	Adjustable from 0 to 300mm
Sample Thickness	0.1 to 10 millimeters
External Dimensions	1200×500×1440 (L×W×H); 1200 by 500 by 1440 (length × width × height)
Weight	170kg
