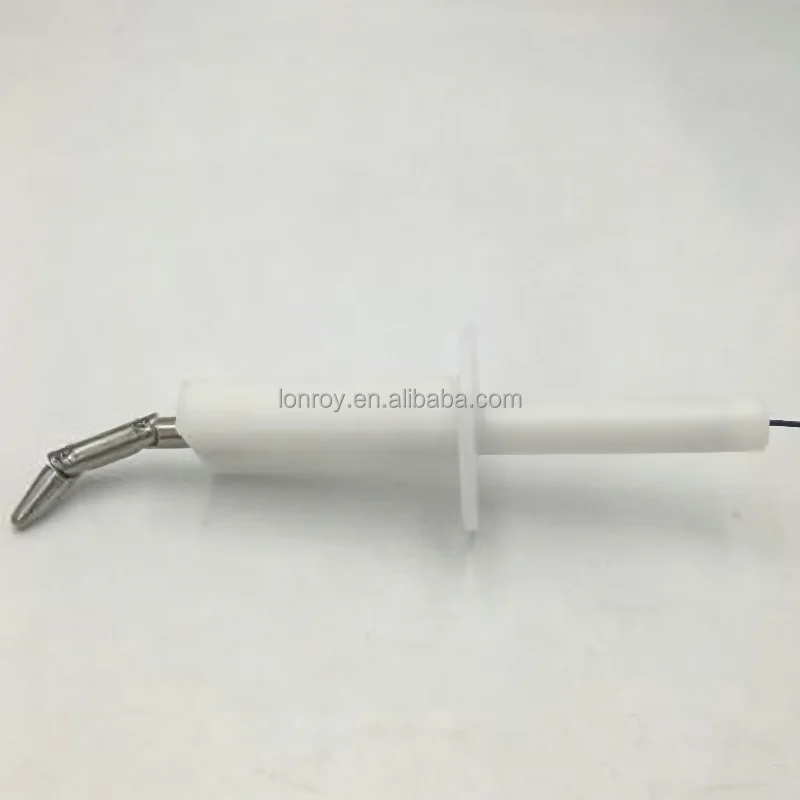

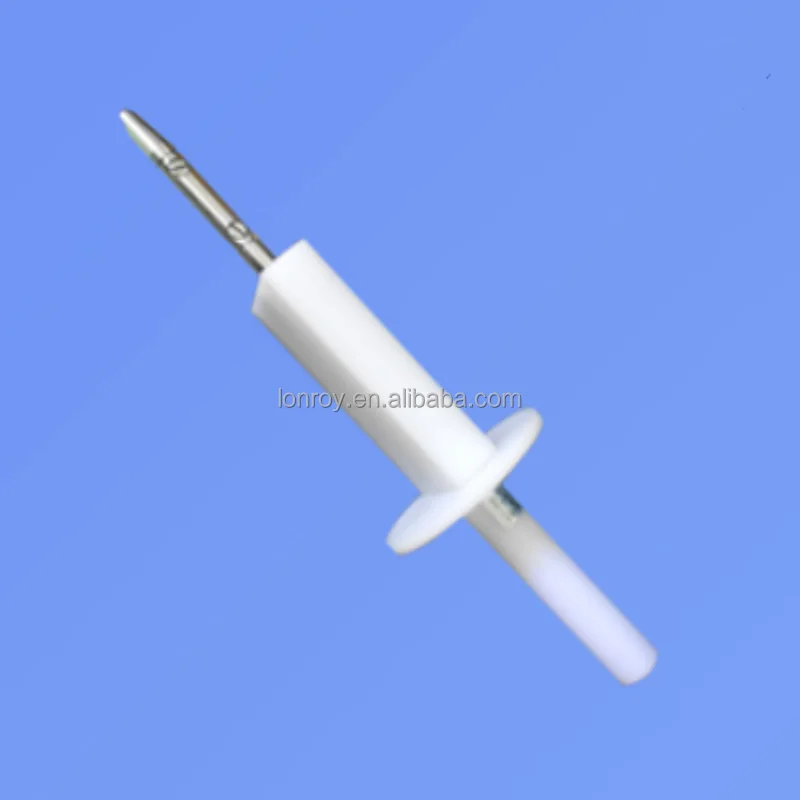

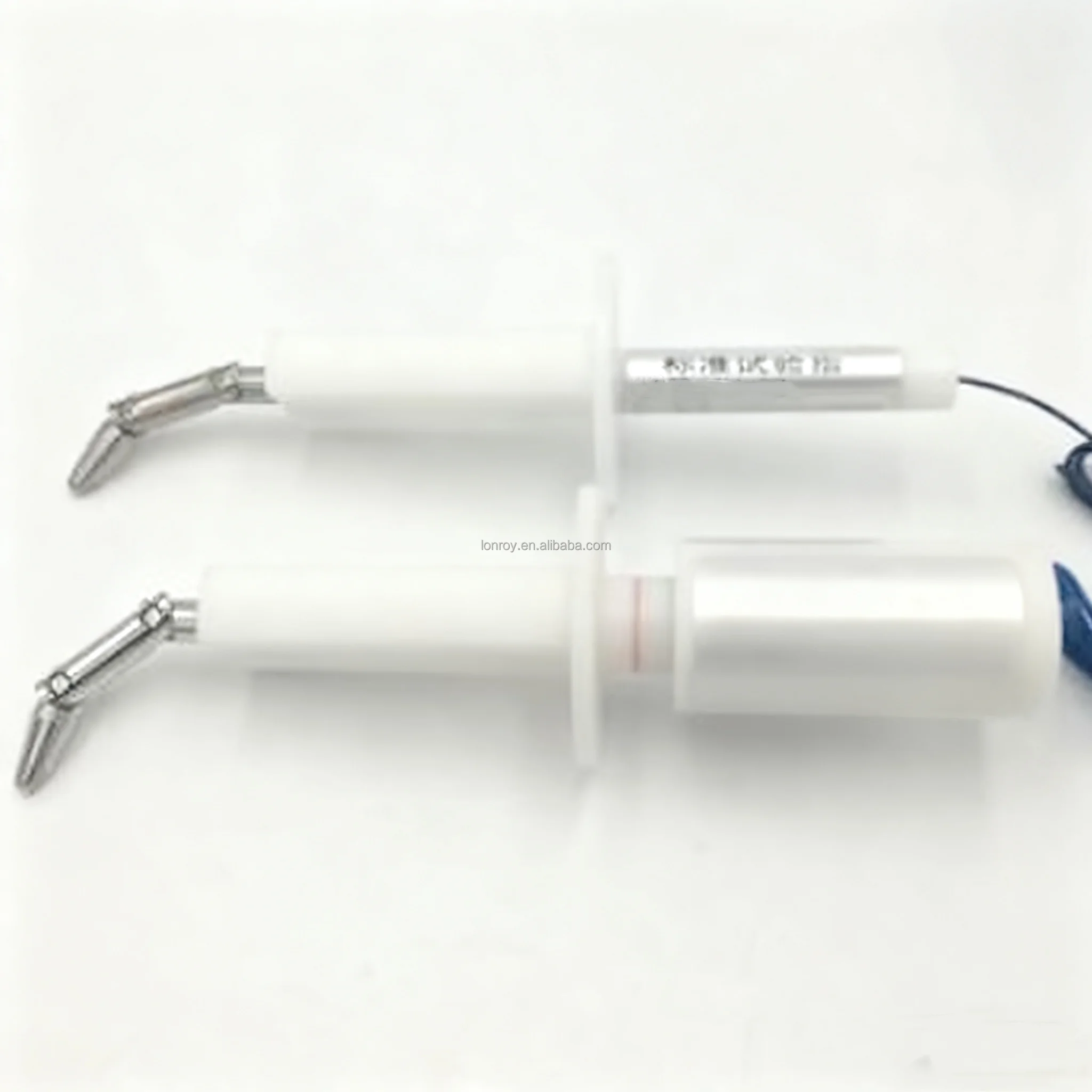

EN 60529 UL 1278 Standard Testing Finger Articulated Test Finger Standard Protection Level Testing Equipment

Brand Name : Lonroy

Place of Origin : China

MOQ : 1

Type : Testing Machine

Protection Class : Ip56

Voltage : 220 V

Finger diameter : 12mm

Finger length : 80mm

Baffle diameter : 50mm

Baffle length : 100mm

Reference standard : GB4706.1-2005, IEC61032:1997

Test apparatus : IEC61032 test apparatus B

Compliance standards : GB4706, GB2099, GB4943, GB4208IPX2, GB3883, IEC950, IEC60884, IEC60335, GB/T16842, UL507, EN60529, UL1278

Certification : ISO ASTM CE

Price : Negotaible

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

EN 60529 UL 1278 Standard Testing Finger Articulated Test Finger Standard Protection Level Testing Equipment

Product Description

Category

Contact Test Apparatus

Introduction

The IEC61032 test apparatus B and the standard test refer to those used for verifying the basic protection against human contact with dangerous components. The IEC61032 test apparatus B and the standard test, the hinge test, also refer to the protective tests for preventing fingers from touching.

Standard

The IEC61032 test apparatus B, the standard test comply with the requirements of GB4706, GB2099, GB4943, GB4208IPX2, GB3883, IEC61032 test apparatus B, IEC950, IEC60884, IEC60335, GB/T16842 test apparatus B, UL507, EN60529, UL1278, etc. They are used for protection tests to prevent finger contact or electrocution.

Source: GB/T16842-2016 Test Apparatus for Protection of Enclosures against Human and Equipment


EN 60529 UL 1278 Standard Testing Finger Articulated Test Finger Standard Protection Level Testing Equipment

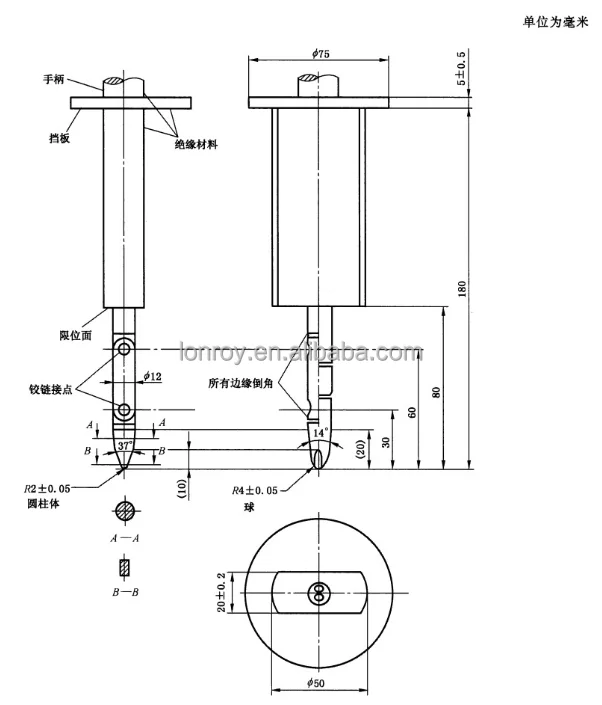

Technical Specification

Diameter of the curved finger

12mm

Length of the curved finger

80mm (total length of three sections)

Diameter of the baffle

50mm

Length of the baffle

100mm

Reference standard

Article 8.1.1 of GB4706.1-2005, IEC61032:1997

EN 60529 UL 1278 Standard Testing Finger Articulated Test Finger Standard Protection Level Testing EquipmentEN 60529 UL 1278 Standard Testing Finger Articulated Test Finger Standard Protection Level Testing EquipmentEN 60529 UL 1278 Standard Testing Finger Articulated Test Finger Standard Protection Level Testing EquipmentEN 60529 UL 1278 Standard Testing Finger Articulated Test Finger Standard Protection Level Testing EquipmentEN 60529 UL 1278 Standard Testing Finger Articulated Test Finger Standard Protection Level Testing Equipment
